Edelbrock Performer RPM 348/409 Chevy Cylinder Head (Complete) - 60819

Part Number: EDE60819

Your Price:
$1,504.95
Write a Review
UPC:
85347608195
Availability:
Special order
MPN:
60819

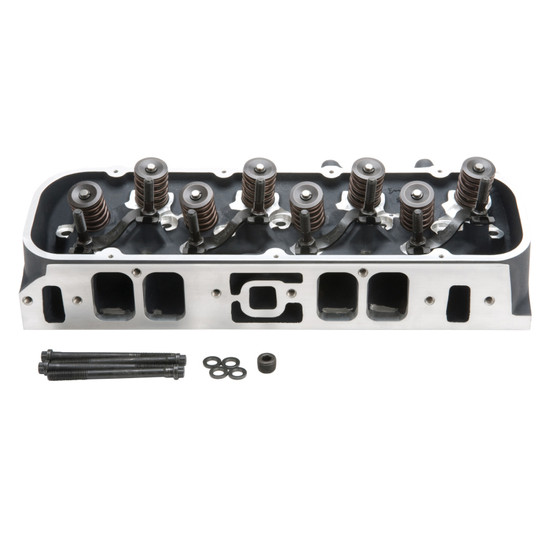

Photo - Primary

Product Information

Cylinder Head Specifications; Combustion chamber volume: 16cc; Intake runner volume: 215cc; Exhaust runner volume: 115cc; Intake valve diameter: 2.19; Exhaust valve diameter: 1.72; Valve stem diameter: 11/32; Valve guides: Manganese bronze; Deck thickness: 9/16; Valve spring diameter: 1.55; Valve spring maximum lift: .600; Rocker stud: 7/16; Guideplate: Hardended steel; Pushrod diameter: 3/8; Valve angle: 0°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat ** Use Edelbrock head gasket sets. May be used on 348 engines with valve lifts up to .550 only. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4 reach with flat gasket seat. These heads will only fit 1958-65 348 c.i.d. W engines if an Edelbrock #5409, #7159 or stock large port 409 c.i.d. manifold is used. Proper cylinder wall notching must be checked to ensure exhaust valve to cylinder clearance. Deck thickness: 9/16, rocker stud diameter: 7/16, pushrod diameter: 3/8 (width of slot in guide plate).

This Part Fits:

YearMakeModelSubmodel
1958-1965ChevroletBel AirBase
1958-1965ChevroletBiscayneBase
1960ChevroletBiscayneFleetmaster
1958-1961ChevroletBrookwoodBase
1960-1961ChevroletC10 PickupBase
1960-1961ChevroletC20 PickupBase
1960-1961ChevroletC30 PickupBase
1958ChevroletDel RayBase
1959-1960ChevroletEl CaminoBase
1958-1965ChevroletImpalaBase
1964-1965ChevroletImpalaSS
1960-1961ChevroletK10 PickupBase
1960-1961ChevroletK20 PickupBase
1959-1961ChevroletKingswoodBase
1958-1961ChevroletNomadBase
1959-1961ChevroletParkwoodBase
1958ChevroletSedan DeliveryBase
1960-1961ChevroletSuburbanBase
1958,1960ChevroletTruckBase
1958ChevroletYeomanBase
