Edelbrock Single Ford FE 72cc 390/428 Head Comp - 60069

Part Number: EDE60069

Your Price:
$908.95
Write a Review
UPC:
85347600694
Availability:
Special order
MPN:
60069

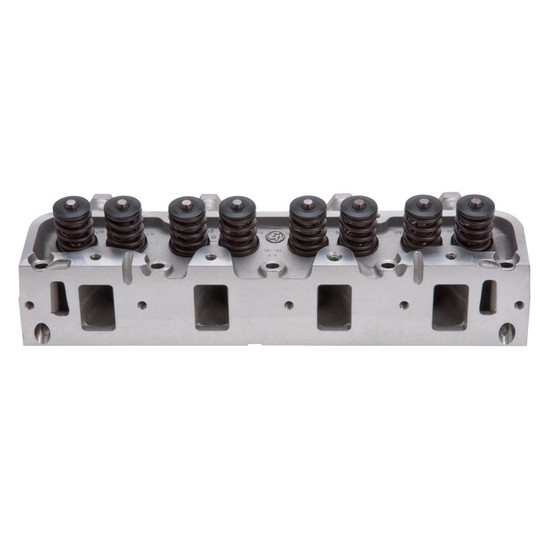

Photo - Primary

Product Information

Cylinder Head Specifications: Combustion chamber volume: 72cc / 76cc; Intake runner volume: 170cc; Exhaust runner volume: 125cc; Intake valve diameter: 2.09"; Exhaust valve diameter: 1.66"; Valve stem diameter: 3/8"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .600"; Pushrod diameter: 3/8"; Valve angle: 13°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. 76cc heads have vertical bolt pattern only, 390 GT exhaust will not fit. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8". IMPORTANT NOTES: Direct bolt-on heads for 1961-76 390-427-428 Fords. 428 Cobra Jet-sized valves promote excellent flow for streetable power. #60089 can be machined to accept 2.19" intake and 1.73" exhaust valves. Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head. Intake and exhaust CC values are projected if using Edelbrock valves, and equivalent valve job and bowl blend. Edelbrock FE heads do not have the bolt pattern to accommodate the stock GT 390 exhaust manifolds. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Replacement valve part numbers are for sets of 8. Deck thickness, 5/8". #6009 rocker shaft stud kit recommended.

This Part Fits:

YearMakeModelSubmodel
1968FordCountry SedanBase
1968FordCountry SquireBase
1968FordCustomBase
1968FordCustom 500Base
1968-1970FordFairlane500
1968-1969FordFairlaneBase
1968FordGalaxie 500Base
1968FordGalaxie 500XL
1968FordGT40Base
1969FordGT40MK III
1968FordLTDBase
1968-1970FordMustangBase
1970FordMustangGrande
1970FordMustangMach 1
1968-1970FordMustangShelby GT-500
1968FordMustangShelby GT-500KR
1968FordRanch WagonBase
1968-1969FordRanchero500
1968-1969FordRancheroBase
1968-1969FordRancheroGT
1969FordThunderbirdBase
1968-1970FordTorinoBase
1969FordTorinoCobra
1968-1970FordTorinoGT
1970FordTorinoSuper Cobra Jet
1969MercuryCometBase
1968MercuryCougarBase
1968MercuryCougarXR-7
1969MercuryCycloneBase
1969MercuryCycloneCJ
1969MercuryCycloneSpoiler
1968-1969MercuryMontegoBase
1968-1969MercuryMontegoMX
